1500m Diamond Core Hydraulic Drilling Rig With Variable Displacement Hydraulic Motor

Name: 1500m Diamond Core Hydraulic Drilling Rig With Variable Displacement Hydraulic Motor
Brand: CHANGTAN
Price: 10000 USD

Brand Name : CHANGTAN

Model Number : CYDX-5

Certification : SGS/CE/ISO9001

Place of Origin : CHANGSHA HUNAN

MOQ : 1 SET

Price : 10000USD-35000USD

Payment Terms : T/T L/C

Supply Ability : 50 sets/ month

Delivery Time : 7-10 working days

Packaging Details : Exported wooden box

DRILLING DEPTH : 1500m

Dimension & Weight : 10000*2250*2650mm, 9000kgs

Crawler : 600*400mm, max 2km/h, 30°clambing

MUD PUMP : Max displacement 250L/min, max 10Mpa

Drilling Angle : 45°-90°

Contact Now

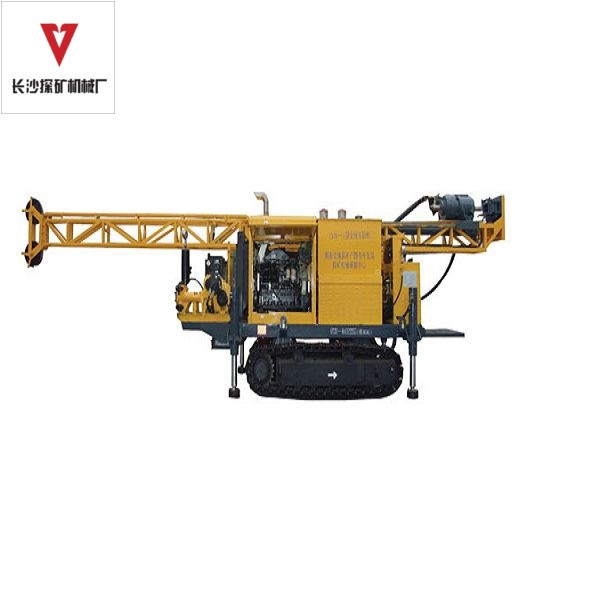

1500m Diamond Core Hydraulic Drilling Rig With Variable Displacement Hydraulic Motor

CYDX-5 CRAWLER HYDRAULIC DRILING RIG

1. 2 Gear Speed Grades(manual) with variable displacement hydraulic motor, power head output can be stepless adjusted 0-1200 r.p.m. With 2 torque grades meets different drilling requirements.

2. Long feeding stroke, 3.5m.

3. Hoist 9m drilling tools in one time

4. Imported quality hydraulic parts, Cummins engine.

Dimension & Weight	1000022502650mm, 9000kgs
Crawler	600*400mm, max 2km/h, 30°clambing
DRILLING CAPACITY	600m/PQ, 900m/HQ, 1200m/NQ, 1500m/BQ
ENGINE	Water cooling, turbo pressure, 6 cylinders, 132kw @2200r.p.m
POWER HEAD
Reduction Ratio	Rotary Speed(r.p.m)	Torque(Nm)
8.77:1	0-300	4040
2.19:1	525-1200	1050
MAIN WINCH	Lifting Capacity 7700kg, 45m/min, single pull
	18mm*50m rope capacity
WIRELINE WINCH	Lifting Capacity 1250kg, 90m/min
	6mm*1500m rope capacity
DERRICK	9.6m
Drilling Angle	45°-90°
Stroke	3500mm
Max Thrust Capacity	50.2kN
Max Balance Capacity	152kN
MUD PUMP	Max displacement 250L/min, max 10Mpa
