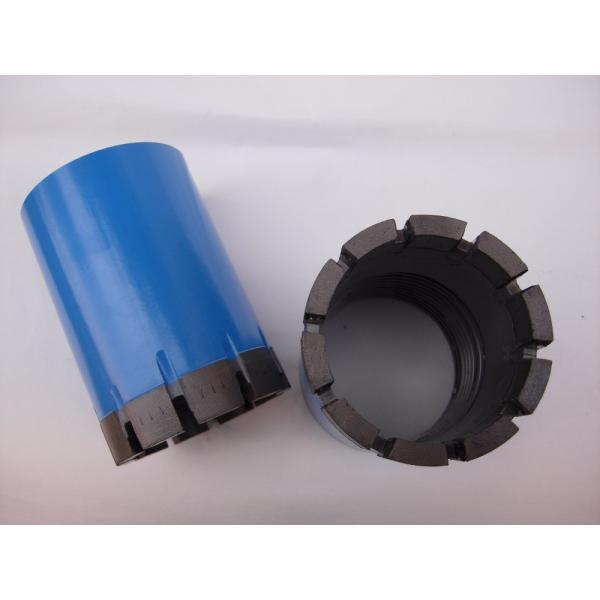

Diamond Drill Rod Casing Shoe Bit With High Efficiency Impregnated Diamond Casing

Name: Diamond Drill Rod Casing Shoe Bit With High Efficiency Impregnated Diamond Casing
Brand: CHANGTAN
Price: 70 USD

Model Number : AW BW NW HW PW

Place of Origin : CHANGSHA HUNAN

Brand Name : CHANGTAN

Certification : SGS/CE/ISO9001

MOQ : 1 SET

Price : 70USD-400USD

Packaging Details : Exported wooden box

Delivery Time : 7-10 working days

Payment Terms : T/T L/C

Supply Ability : 1000 pc /MONTH

Type 1 : Electroplated Diamond

Type 2 : Impregnated Diamond

Type 3 : Surface Set Diamond

Type 4 : Tungsten Carbide

Type 5 : Polycrystalline Diamond compact

Contact Now

Diamond Drill Rod Casing Shoe Bit With High Efficiency Impregnated Diamond Casing

Casing Shoe
Size	O.D	I.D	Availability
Size	mm	mm	Imp.	S.S	T.C.	E.P.
AW	59.5	48.3	√	√	√	√
BW	75.2	60.2	√	√	√	√
NW	91.8	76	√	√	√	√
HW	117.4	99.7	√	√	√	√
PW	143.4	123.4	√	√	√	√

Casing Bits
Size	O.D	I.D	Availability
Size	mm	mm	Imp.	S.S	T.C.	E.P.
AW	59.5	45.2	√	√	√	√
BW	75.2	56.3	√	√	√	√
NW	91.8	72.2	√	√	√	√
HW	117.4	96.0	√	√	√	√
PW	143.4	117.7	√	√	√	√

Noted:
Imp.-Impregnated Diamond Type
S.S.-Surface Set Diamond Type
T.C.-Tungsten Carbide Type
PDC.-Polycrystalline Diamond compact Type
E.P.- Electroplated Diamond Type

Advantages:
1. Fast cutting and drilling speed
2. Long life, stable performance
3. Low power consumption
4. Professional OEM, superior grade quality, more than 5years manufacturing experience
5..CE: ISO: 9001: 2000
